Adaptér typu C-mount MAGUS ZFA050

Adaptér typu C-mount MAGUS ZFA050

MAGUS ZFA050 adaptér typu C-mountS nastaviteľnou ohniskovou vzdialenosťou. Zväčšenie: 0,5xMAGUS YFA050 je adaptér typu C-mount, ktorý má nastaviteľnú ohniskovú vzdialenosť, a je určený na inštaláciu digitálneho fotoaparátu do trinokulárneho tubusu trinokulárneho mikroskopu MAGUS. Zväčšenie adaptéra dosahuje 0,5x. Maximálne zorné pole bez vinetácie získate so snímačmi 1/2,5" až 2/3".Vhodné pre:✓ Digitálny fotoaparát MAGUS CBF10✓ Digitálny fotoaparát MAGUS CBF30✓ Digitálny fotoaparát MAGUS CBF50✓ Digitálny fotoaparát MAGUS CBF90✓ Digitálny fotoaparát MAGUS CDF10✓ Digitálny fotoaparát MAGUS CHD20✓ Digitálny fotoaparát MAGUS CHD30✓ Digitálny fotoaparát MAGUS CHD50Kompatibilita:✓ Stereomikroskop MAGUS Stereo 7T✓ Stereomikroskop MAGUS Stereo 8T✓ Hlavica mikroskopu MAGUS Stereo 7TH✓ Hlavica mikroskopu MAGUS Stereo 8TH

kúpiť
Pridať hodnotenie

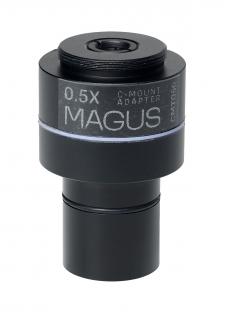

Adaptér typu C-mount MAGUS CMT050

Adaptér typu C-mount MAGUS CMT050

C-mount adapters from the MAGUS brand are used to connect a camera with a microscope. Each adapter model has its own magnification, and so you should select it based on the characteristics of your camera’s sensor. The CMT050 model with 0.5x magnification is designed for cameras with a sensor size of 1/3"–1/2": This will provide the widest and clearest field of view. The adapter is recommended for MAGUS camera models CBF10, CDF10, CHD10, CHD20, and CHD30. To install the camera in the eyepiece tube, you wil

kúpiť

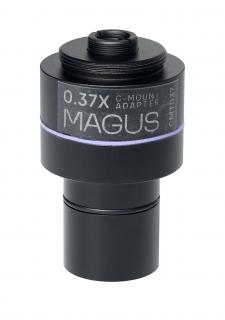

Adaptér typu C-mount MAGUS CMT037

Adaptér typu C-mount MAGUS CMT037

The MAGUS C-mount adapter is designed to connect a camera to a microscope. You can choose the right model based on the parameters of your camera’s matrix. The CMT037 model has a magnification of 0.37x and is ideally combined with cameras with a matrix size of 1/4"–1/3". Recommended for MAGUS cameras (provides maximum field of view): CHD10 CBF10 The adapter is needed to mount a camera in an eyepiece tube instead of an eyepiece. First, connect it to the adapter ring of the required diameter, insert the C-

kúpiť
Adaptér typu c-mount MAGUS CMT100

Adaptér typu c-mount MAGUS CMT100

A C-mount adapter is an accessory that connects a digital camera to a microscope. Each adapter has its own magnification parameters and is compatible with certain cameras. The 1x magnification CMT100 is designed for sensors that are 1" and larger. The largest field of view can be achieved in combination with MAGUS cameras of the following models: CBF70 CDF70 CLM50 CLM70 CLM90 The camera is mounted on the adapter and then mounted in the microscope eyepiece tube. In this case, an adapter ring is put on th

kúpiť

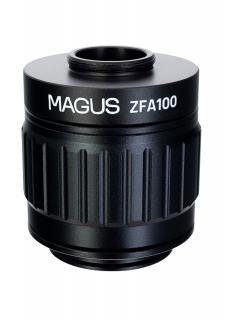

Adaptér typu C-mount MAGUS ZFA100

Adaptér typu C-mount MAGUS ZFA100

MAGUS ZFA100 adaptér typu C-mountS nastaviteľnou ohniskovou vzdialenosťou. Zväčšenie: 1xMAGUS ZFA100 je adaptér typu C-mount, ktorý je vysoko kvalitný a je ideálny pre profesionálne činnosti v oblasti mikroskopie a optiky. Adaptér je skvelým riešením pre pripojenie kamier, ktoré používajú C-mount závit, k rôznym optickým zariadeniam, ako sú napríklad mikroskopy alebo telecentrické objektívy. Disponuje možnosťou nastavenia ohniskovej vzdialenosti. Inštaluje sa do digitálneho fotoaparátu trinokulárneho tubu

kúpiť

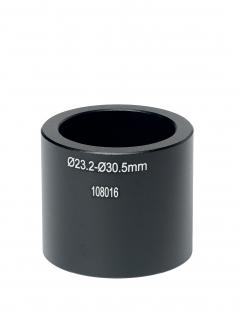

Krúžok na adaptér MAGUS MR305

Krúžok na adaptér MAGUS MR305

The MAGUS MR305 adapter ring enables you to install a digital camera into the microscope eyepiece tube. Its function is to connect devices of different diameters. The ring is placed in the microscope eyepiece tube with a diameter of 30.5mm. Then, a C-mount adapter with a 23.2mm barrel diameter with a digital camera is installed in the ring.

kúpiť

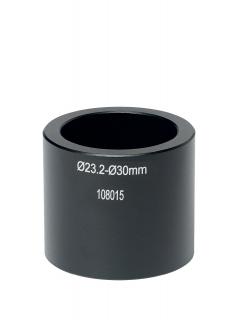

Krúžok na adaptér MAGUS MR300

Krúžok na adaptér MAGUS MR300

An adapter ring is a device that enables you to connect a camera to a microscope. It eliminates the difference in the diameters of the connecting parts of the devices. A C-mount adapter with a diameter of 23.2mm with a digital camera is inserted in the MR300 ring. Then, the ring is connected to the eyepiece tube of the microscope. MR300 fits a 30mm tube diameter.

kúpiť

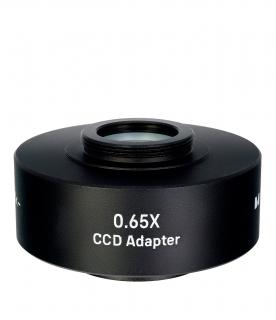

Adaptér MAGUS CFA065 C-mount

Adaptér MAGUS CFA065 C-mount

MAGUS CFA065 C-mount adaptérZväčšenie 0,65xAdaptér MAGUS CFA065 C-mount je dôležitým príslušenstvom pre mikroskopy, ktoré umožňuje jednoduché pripojenie digitálnych kamier s C-mount závitom do trinokulárneho tubusu trinokulárnych mikroskopov MAGUS. Adaptér je navrhnutý s precíznosťou a dôrazom na kvalitu, aby zaistil spoľahlivé a stabilné pripojenie kamier k mikroskopom, vďaka čomu budete môcť zachytávať a analyzovať detailných obrazov a videí z mikroskopických skúmaní. Zväčšuje 0,65x a je vhodný pre komb

kúpiť
Sada polarizátora a analyzátora MAGUS SPD1 Polarizer/Analyzer Set

Sada polarizátora a analyzátora MAGUS SPD1 Polarizer/Analyzer Set

These polarization devices are used for polarized light observations. They include a rotating polarizer (90° rotation) that is placed on the collector and an analyzer that is mounted in a slot above the revolving nosepiece. The intensity of illumination depends on the mutual arrangement of these two devices. When they are perpendicular to each other, the sample is completely darkened. Compatibility: Magus Bio 230B Biological Microscope Magus Bio 230BL Biological Microscope Magus Bio 230T Biological Micro

kúpiť
Mikroskopický okulár MAGUS ME15 15x/15mm (D 30mm)

Mikroskopický okulár MAGUS ME15 15x/15mm (D 30mm)

The 15x magnification eyepiece is suitable for 4x, 10x, 20x, and 40x objectives. It is designed to fit into an eyepiece tube 30mm in diameter. The eyepiece has no adjustment to compensate for the user’s vision (diopter adjustment). If this is necessary, we recommend using an eyepiece with a microscope that has a diopter adjustment ring on the eyepiece tube. You can look through the eyepiece at a distance of up to 10mm, which is very convenient for those who wear glasses. Compatibility: MAGUS Bio 250B B

kúpiť
Mikroskopický okulár MAGUS ME12 12.5х/14mm (D 30mm)

Mikroskopický okulár MAGUS ME12 12.5х/14mm (D 30mm)

The 12.5x eyepiece is designed for 4x, 10x, 20x, 40x, 60x, and 100x objectives. It is compatible with a 30mm eyepiece tube. The eyepiece has no diopter adjustment mechanism to match the observer’s eyesight. You can adjust the focus on the microscope, which is equipped with a diopter adjustment ring (located on the eyepiece tube). The eyepiece has a 10mm eye relief, which makes it convenient to observe with glasses. Compatibility: MAGUS Bio 250B Biological Microscope MAGUS Bio 250BL Biological Microscop

kúpiť
Mikroskopický okulár MAGUS ME25 25х/9mm (D 30mm)

Mikroskopický okulár MAGUS ME25 25х/9mm (D 30mm)

This eyepiece has 25x magnification for use with 4x and 10x objectives. This model does not have a diopter adjustment ring. If it is necessary to adjust the focus to match the observer’s vision, you should use the eyepiece with a microscope that features a diopter adjustment ring that is located on the eyepiece tube. The eye relief is 10mm and, therefore, the observer can view while wearing glasses. The diameter of the eyepiece tube is 30mm. Compatibility: MAGUS Bio 250B Biological Microscope MAGUS Bio

kúpiť
Mikroskopický okulár s dioptrickou korekciou MAGUS MD12 12.5х/14mm (D 30mm)

Mikroskopický okulár s dioptrickou korekciou MAGUS MD12 12.5х/14mm (D 30mm)

The 12.5x magnification eyepiece is used for 4x, 10x, 20x, 40x, 60x, and 100x objectives. The eyepiece is mounted in a 30 mm diameter tube. This model has a diopter adjustment ring to compensate for the user’s vision. This means that the eyepiece can be used with microscopes that do not have an adjustment ring on the eyepiece tube. If the microscope has such a mechanism, the focus can be adjusted either on the eyepiece or on the microscope. The 10mm eye relief makes it comfortable to observe while wearing

kúpiť
Mikroskopický okulár s dioptrickou korekciou MAGUS MD20 20х/12mm (D 30mm)

Mikroskopický okulár s dioptrickou korekciou MAGUS MD20 20х/12mm (D 30mm)

This eyepiece is for MAGUS microscopes. It provides 20x magnification and can be used with 4x, 10x, and 20x objectives. The special feature of this eyepiece is the diopter adjustment ring, which can adjust the focus to compensate for the user’s vision. If the eyepiece is used with a microscope with diopter adjustment, the focus can be adjusted in two ways. The MAGUS MD20 20x/12mm eyepiece is mounted into an eyepiece tube 30mm in diameter. A 10mm eye relief is designed for comfortable observation when wear

kúpiť
Montážny kolíček MAGUS P32

Montážny kolíček MAGUS P32

MAGUS P32 montážny kolíčekPre stereomikroskopyMontážny kolíček MAGUS P32 je pomocný spojovací prvok stereomikroskopu. Je určený na montáž držiaka na zaostrovanie MAGUS FM3 na stojany MAGUS UT1 a MAGUS UT3.Priemer montážneho kolíka je 32 mm.Jednoduchá a intuitívna montáž je výhodou montážneho kolíčka MAGUS P32. Vďaka ergonomickému dizajnu a optimalizovanému tvaru je montáž rýchla a bezproblémová. Pre maximálnu bezpečnosť a spoľahlivosť je montážny kolíček MAGUS P32 podrobený prísnym kontrolám kvality. Každ

kúpiť
Mikroskopický okulár MAGUS ME20 20х/12mm (D 30mm)

Mikroskopický okulár MAGUS ME20 20х/12mm (D 30mm)

This eyepiece has 20x magnification and a 12mm field of view for 4x, 10x, and 20x objectives. The eyepiece has no diopter adjustment to compensate for the user’s vision (diopter adjustment). It is possible, however, when used with a microscope that has a diopter adjustment ring (the ring is located on the tube). The eye relief is 10mm, which means that the eyepiece is convenient for those who wear glasses. It is mounted into an eyepiece tube 30mm in diameter. Compatibility: MAGUS Bio 250B Biological Mi
